Summary:

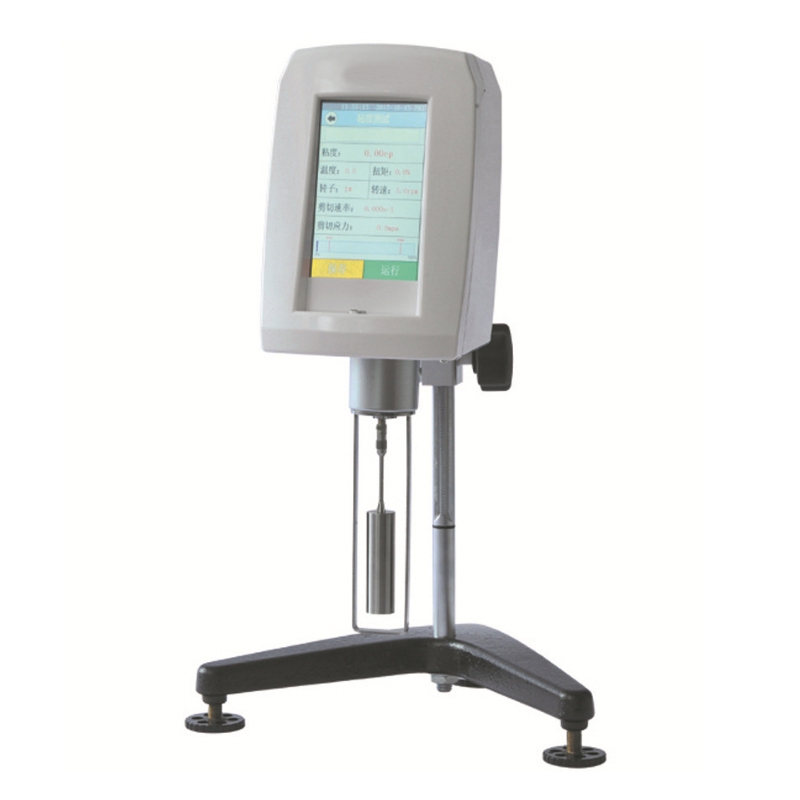

This T-Series touch-screen rotary viscometer measures the viscosity of Newtonian or non-Newtonian liquids. And they are widely used in a variety of fluids that require viscosity measurement and fluids that melt under high temperature. Including paints, coatings, cosmetics, inks, pulp, food, oil, starch, solvent-based adhesives, latex, biochemical products and other industries.
Specification:
|
Model |
NDJ-5T |
|
Control / display mode |
5-inch color touch screen |
|
Speed (r/min) |
6/12/30/60 |
|
Measuring range |
1~100000mPa.s (1-10mPa.s, need choose 0# rotor) |
|
Rotor |
1 - 4# (standard); 0# rotor (optional) |
|
Measurement error (Newtonian liquid) |
±0.5% |
|
Repeat error (Newtonian liquid) |
±0.25% |
|
Timing function |
Yes |
|
Temperature measurement function |
Standard temperature probe interface (requires optional temperature probe) |
|
Automatic scanning function |
Automatically scan and recommend a priority combination of rotor and speed |
|
Display measurement range |
Automatic display of the selected viscous viscosity range in combination with the selected rotor and speed |
|
Display shear rate/shear rate |
Yes |
|
Automatic display of kinematic viscosity |
Need to enter the density of the sample |
|
Self-built measurement program |
Save 30 groups (including rotor, speed, temperature, time, etc.) |
|
Save measurement results |
Save 30 sets of data (including viscosity, temperature, rotor, speed, shear rate,Shear stress, time, density, kinematic viscosity, etc.) |
|
Viscosity curve |
Display viscosity curve |
|
|
Data and curve can be printed (machine got print interface, printer is optional parts) |
|
Data output interface |
Yes |
|
Thermostatic unit |
Option (including special thermostats for various viscometers, thermostatic cups, etc.) |
|
Working power |
110V / 60Hz or 220V / 50Hz |
|
Dimensions |
300 × 300 × 450(mm) |
Main feature:
1.ARM technology, built-in Linux system. The operation interface is simple and clear, and the viscosity test is performed quickly and conveniently through the creation of test programs and data analysis;
2.Viscosity measurement is accurate, each range is automatically calibrated by computer, with high precision and small error;
3.Display content is rich: in addition to viscosity, there are temperature, shear rate, shear stress, measured value as a percentage of full scale value (graphic display), range overflow alarm, automatic scanning, viscosity measurement range under the current rotor speed combination, Date, time, etc. The kinematic viscosity can be displayed at a known density to meet different measurement requirements of the user;
4. Full-featured, can be timed measurement, self-built 30 sets of test procedures, access to 30 sets of measurement data, real-time display of viscosity curves, print data and curves, etc.;
5. Front level meter, horizontal adjustment is intuitive and convenient;
6.Optional temperature probe, special thermostat bath for viscometer, constant temperature cup, printer, standard viscosity sample (standard silicone oil), etc.
7. Chinese and English operating systems.
