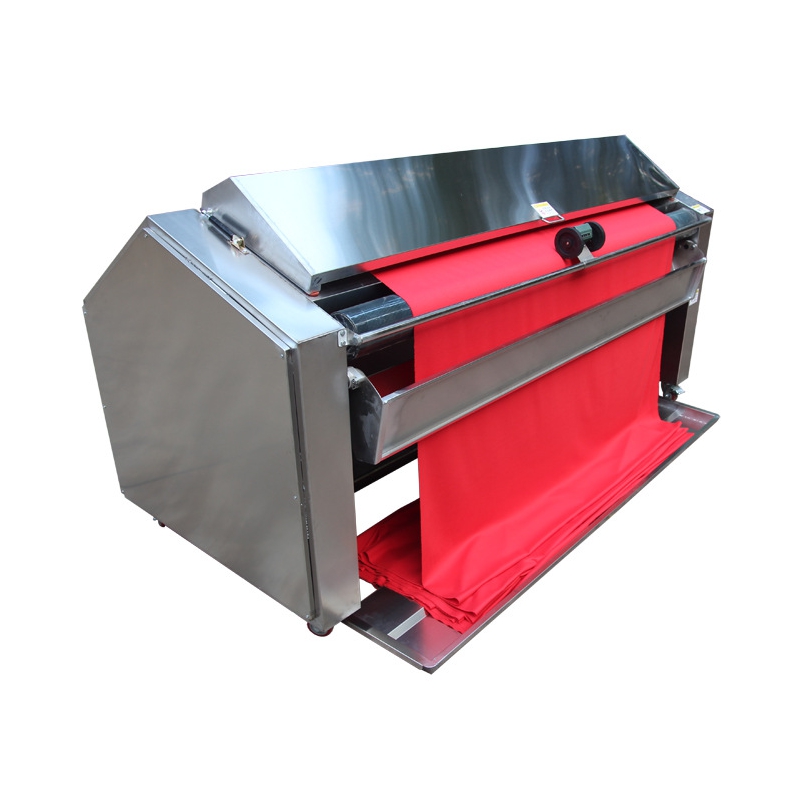

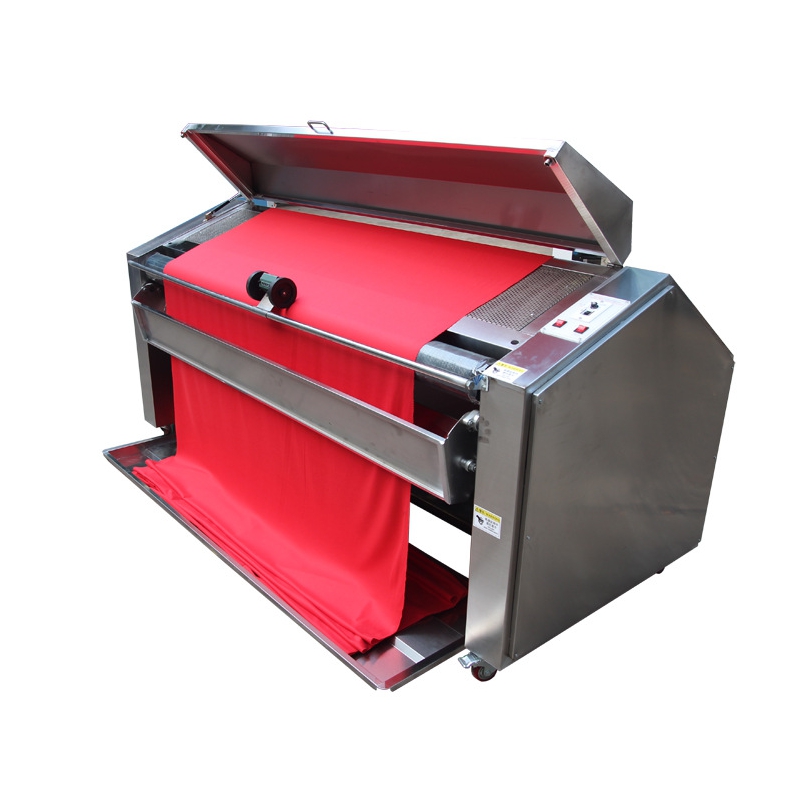

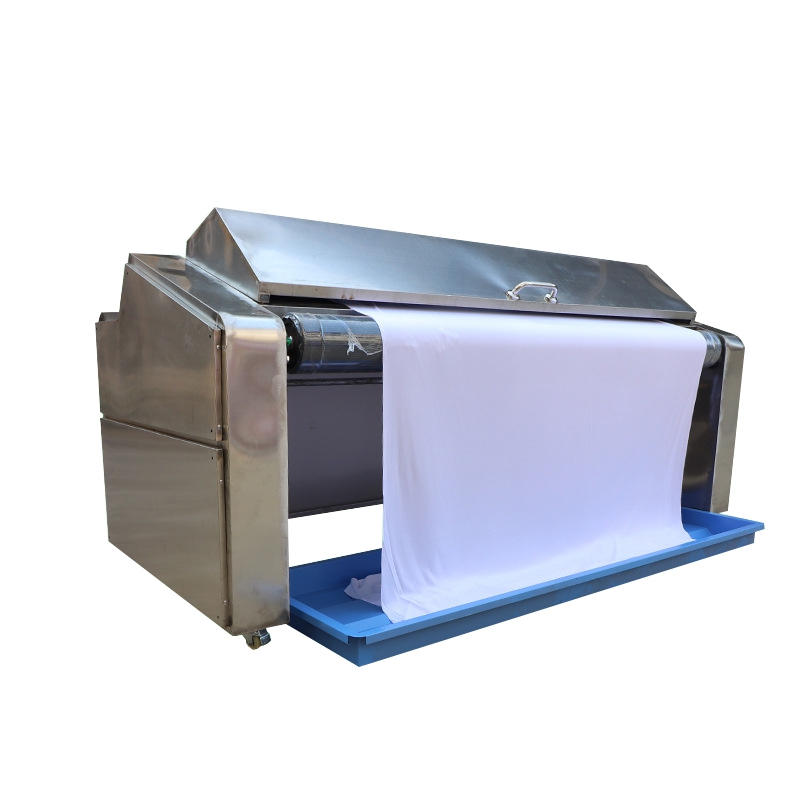

Cloth Heat Steam Shrinking Setting Stenter Machine is suitable for pre shrinking and setting treatment before cutting in garment factory to prevent fabric deformation, stabilize size and make fabric fluffy and soft.
Product features:
1. the whole machine is made of 304 stainless steel to prevent rust and corrosion.
2. the shrink box can be optionally equipped with heating pipe for secondary heating, which is suitable for different fabrics.
3. it is equipped with a forward and reverse switch, which can return and roll cloth
4. the front roller will automatically feed the cloth, so that the fabric can maintain a certain vertical arc in the conveying room, so that the fabric can be unwinded and fed under tension-free speed regulation.
5. optional code meter (meter meter meter) can be added for cloth measurement.
6. select variable frequency speed regulation motor and adjust the speed as required
Technical parameters:
|
Voltage |
3P, 220V/380V |
|
Air pressure |
0.4-0.6Mpa |
|
Steam consumption |
40-60kg / Hr |
|
Processing speed |
0-30y / min |
|
Machine size |
2400x1 100x1100mm |
|
Power |
400W |
|
Working width |
1900mm |
