Scope of application:

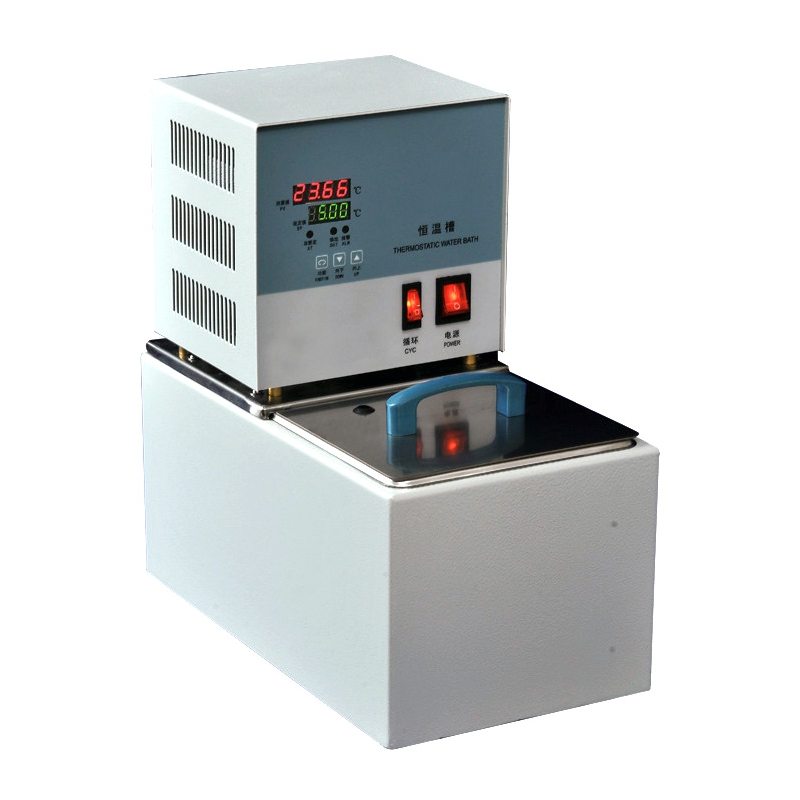

The thermostatic bath adopts current mature high-tech, stable performance, reliable work, novel and beautiful. It is widely used in fine chemicals, biological engineering, medicine and food, metallurgy, petroleum, agriculture and other fields. Provide users with a high-precision constant temperature field source. It is an ideal constant temperature device for research institutes, universities, industrial and mining enterprises, agricultural offices, and quality departments.
Parameter:
Product name |
constant temperature oil tank |
|||
Temperature control range |
RT+10~ 100℃ |
RT+15~150℃ |
RT+20~200℃ |
RT+30~300℃ |
Temperature fluctuation |
±0.05℃ (pure water or pure ethanol) |
|||
Temperature control |
microcomputer control; self-tuning PID adjustment |
|||
Display resolution |
0.1℃ |
|||
Tank volume rise |
6L / 10L / 15L / 30L |
|||
Liquid level protection device |
Yes |
No |
||
Circulation method |
inner/outer circulation |
inner circulation |
||
Pump flow rate |
10L / 30L |
|||
Power |
1.5KW |
1.8KW |
||
Dimensions |
According volume |
Main feature:
1. Unique large-screen backlight LCD display, clear and clear information such as set temperature, actual temperature, heating power, working status, etc.
2. High-performance single-chip microcomputer control, self-tuning PID adjustment, imported platinum resistance temperature measurement, high temperature control accuracy and low fluctuation
3. High-performance stirring motor, low noise, low heat, fully enclosed, long life
4. Stainless steel platen and inner tank can effectively avoid corrosion, rust, etc.
5. With burnout protection, over-temperature alarm function, and provide multiple security measures
6. The instrument is stable and reliable, easy to operate and safe
