Introduction :

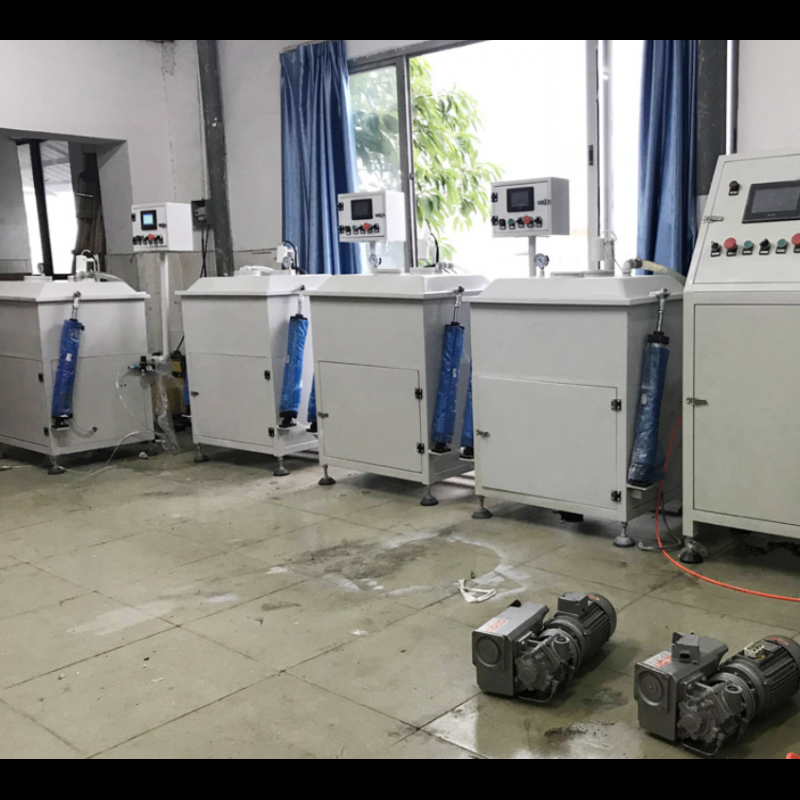

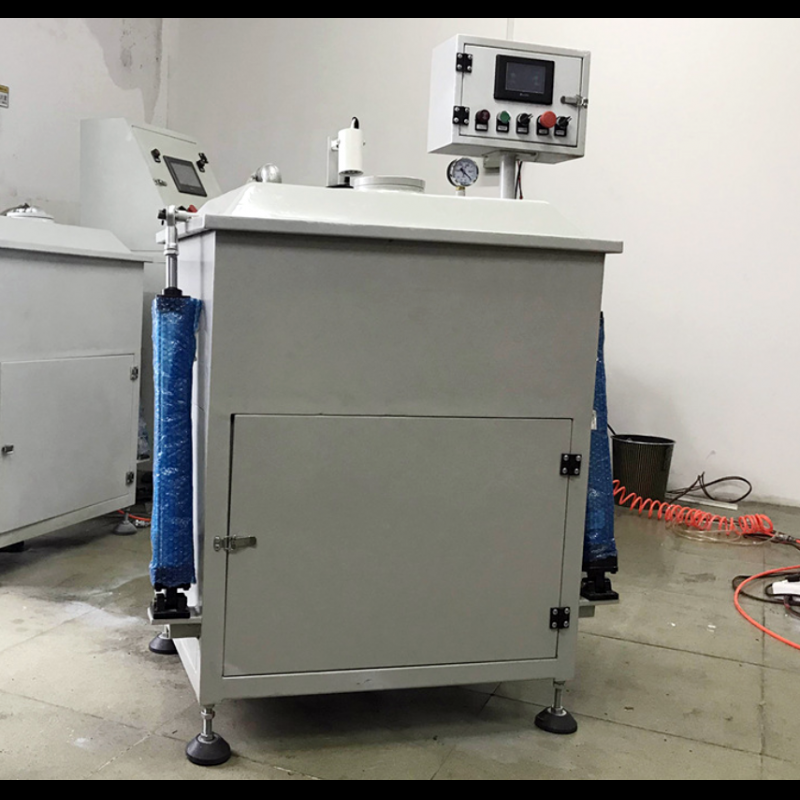

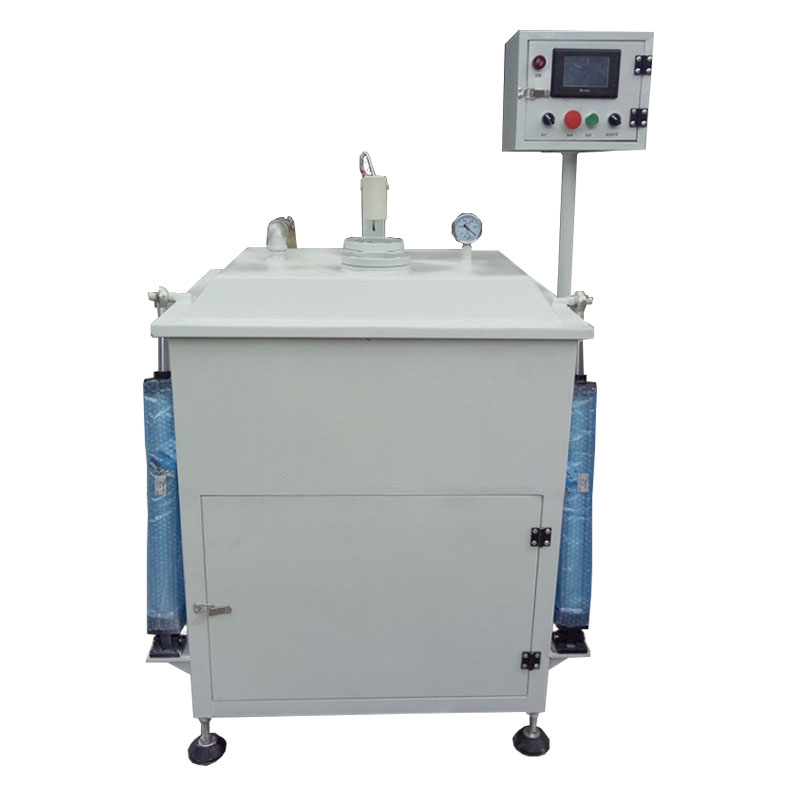

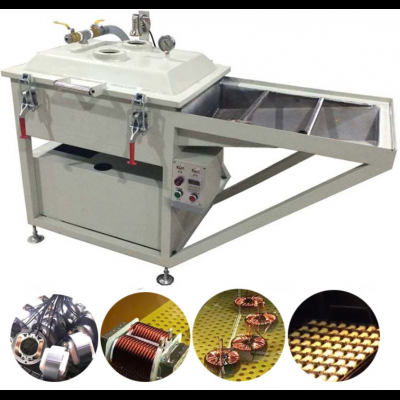

Vacuum immersion machine is suitable for high frequency and low frequency transformers, rectifiers, metal castings and C-core.The equipment of dip paint treatment has the functions of improving the mechanical strength of the coil, insulation strength, moisture-proof, mildew proof and noise reduction. All kinds of metal film capacitors. Resin filling, electrolytic capacitors, medium/small resin crafts vacuum degassing process, and all kinds of plastic PU raw materials vacuum degassing process. Can improve Product quality, reduce production costs, save efficiency, protect the environment.

Parameter:

Feature:

1. Input: AC 380V 3-phase 4-wire 50Hz (power: 1HP)

2. 50KG hydraulic rod is used to support the top cover. The top cover is sealed with silicone rubber around, and the cover is quickly clipped and closed.

3. The use of stepper motor drive precision ball screw to drive the sub-groove lifting type immersion, can be preset lifting height (sub-groove maximum stroke 60mm; Displacement accuracy ±0.05mm)

4. The screw lift has large bearing capacity, high control accuracy, the PIN will not stick to the water, and there is no secondary tinning.

5. PLC controller control, can preset a variety of immersion mode, with timely, appropriate to eliminate the bubble function;

6. Automatic switch box cover, two automatic vacuum, saving time and labor, environmental protection, energy saving, can achieve single multi-machine operation.

7. The whole groove is made of 10MM steel plate. Double glass viewing Windows allow you to view soaking conditions at any time.
