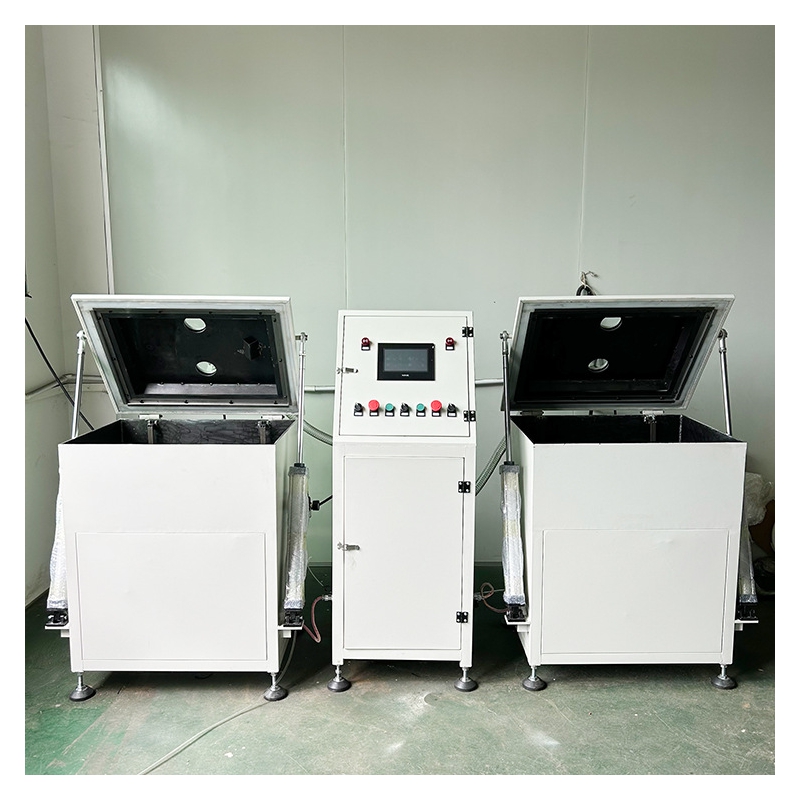

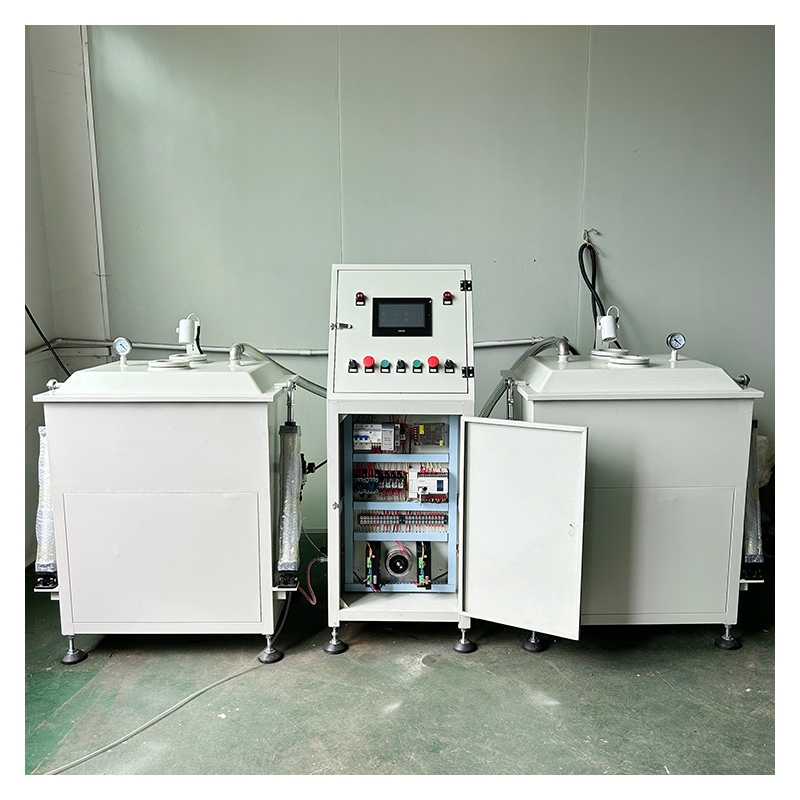

Function of dual cylinder vacuum immersion machine:

1. The immersion time can be set;

2. It has functions such as timed alarm, motor overload protection, and phase loss protection;

3. Exhaust filtration and recycling, with dual effects of environmental protection and recycling;

4. The product has a storage capacity of 500 units;

5. Fully Chinese PLC control, intelligent vacuum pumping, achieving bubble free standing water and beautiful immersion effect.

Parameter:

Application area:

Vacuum immersion machine is a device suitable for immersion treatment of high-frequency and low-frequency transformers, inductors, motors, inductors, rectifiers, hardware castings, and C-type iron cores. It has the functions of improving the mechanical strength, insulation strength, moisture resistance, mold resistance, and noise reduction of coils; Resin filling for various metal film capacitors, electrolytic capacitors, vacuum degassing process for small and medium-sized resin crafts, and vacuum degassing process for various plastic PU raw materials. Can improve product quality, reduce production costs, save and increase efficiency, and protect the environment. This equipment generally comes in dozens of varieties, including assembled, bulk, square cylinder, single machine multi cylinder, multi machine single cylinder, and multi machine multi cylinder types.

Feature description:

1. Input: AC 380V 3-phase 4-wire 50Hz (power: 1HP)

2. Use a 50KG hydraulic rod to support the top cover. The top cover is sealed with silicone rubber around it for quick clamping and closing.

3. Adopting a stepper motor to drive a precision ball screw to drive the sub slot lifting immersion, the lifting height can be pre-set (maximum stroke of the sub slot is 60mm; displacement accuracy is ± 0.05mm).

4. The spiral elevator has a high load-bearing capacity, high control accuracy, and the PIN will not stick to varnish, so there is no need for secondary tin plating.

5. PLC controller control, can preset multiple immersion modes, and has the function of timely and appropriate elimination of bubbles;

6. Automatic opening and closing of the box cover, secondary automatic vacuuming, time-saving and labor-saving, environmentally friendly, energy-saving, and capable of single person multi machine operation.

7. The overall groove is made of 10MM steel plate. The double glass observation window allows for real-time monitoring of immersion conditions.
