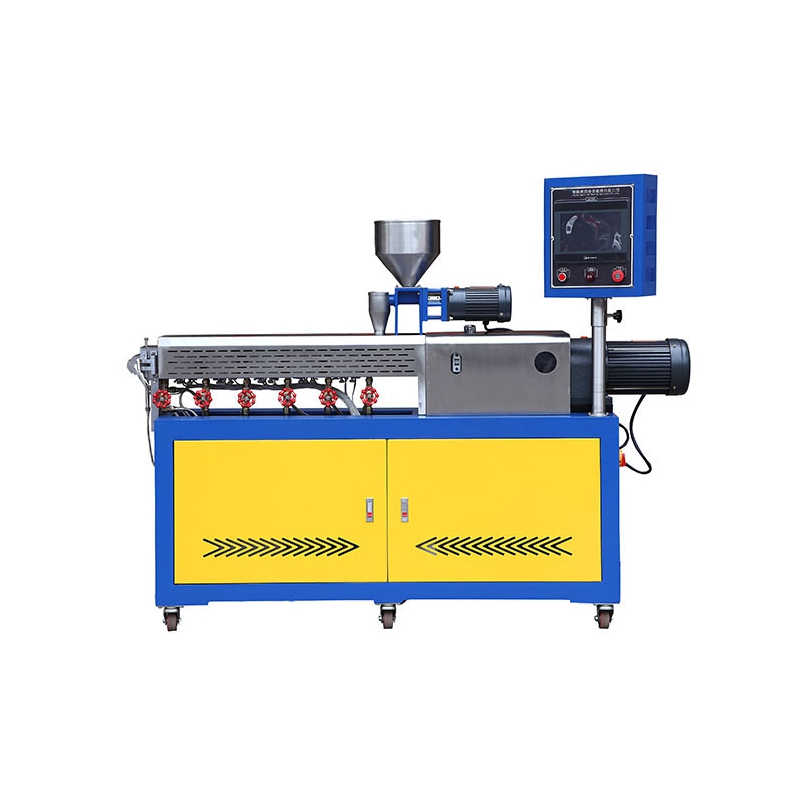

Rubber and Plastic Test Machine

Yield

About 1~10kg/h (according to the process recipe)

Screw diameter

20, 25, 30, 35 optional

Length to diameter ratio

1:40, other length to diameter ratio (10 to 30 times) optional

Screw steering

Flat same direction

Screw speed

0-120rpm frequency control

Screw

The mandrel is made of 40CrNiMoA chrome-molybdenum alloy special tool steel. The original screw is made of W6M05CR4V2 wear-resistant alloy steel with kneading assembly, shearing assembly and rework assembly.

Cartridge

Double-metal material, lining can be replaced with a101 hard alloy wear-resistant inner sleeve, hardness HRC55~60, multi-section cylinder combination according to different functions

Combination method

The screw kit is a modular spiral combination that can be combined according to any material process.

Heating zone

Barrel 5 area cast aluminum heater, head 1 zone heater, stainless steel safety hood

Cooling zone

Soft water circulation cooling system for the entire section of the barrel

Drive System

Gear reduction motor and transmission deceleration and torque distribution integration

Melt temperature

High-precision material temperature sensor monitors melt temperature changes

Melt pressure

0-40Mpa high-precision melt pressure transmission sensor monitors head pressure, interlock control host operation

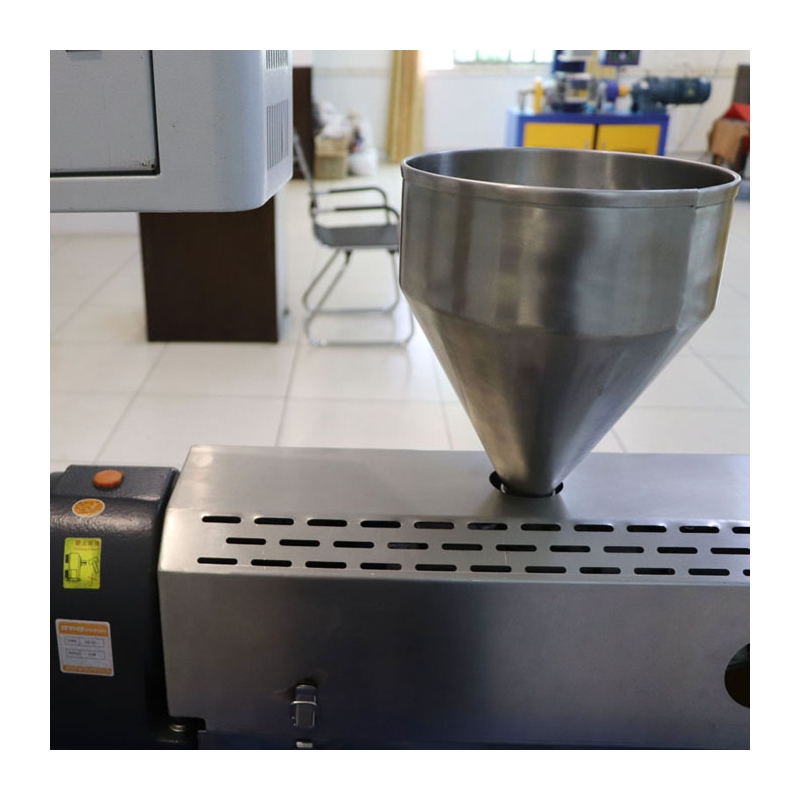

Feeder

0-50rpm variable frequency speed control screw forced feeding

Electronic control system

PLC programmable color touch screen, human-machine interface operating system, extrusion process can be dynamically displayed and monitored, including temperature control, drive, pressure, interlocking joint control function

power supply

AC380V.50Hz three-phase five-wire

volume

1960*600*1550 (W*D*H)mm

weight

About 325kg
