Summary:

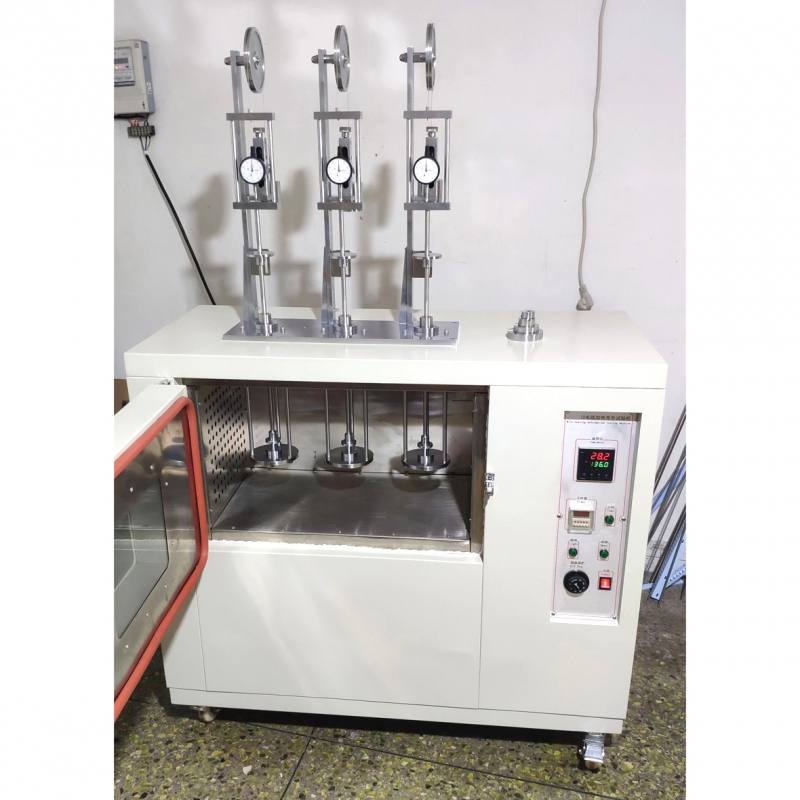

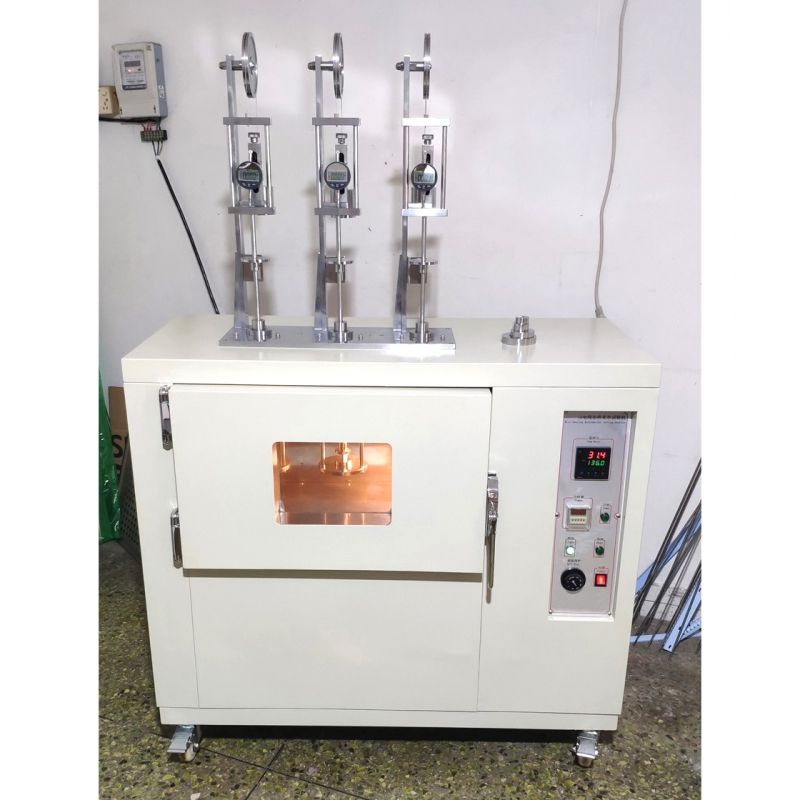

The wire heating deformation tester is suitable for testing the deformation of leather, plastic, rubber, cloth, before and after heating. Auxiliary epoxy powder spray coating, light weight, small volume, beautiful appearance, and wide range of applications.
Execution standards:
The design of this instrument complies with the testing standards UL1581, UL758, ASTM-D2436, JIS-C-3005, and CNS3556742.
Parameter:
|
Power supply |
1PH 220V |
|
electric current |
Max 40A |
|
Temperature range |
Room temperature+10 ℃~200 ℃ |
|
Control accuracy |
± 1 ℃ |
|
Analysis accuracy |
1 ℃ |
|
Distribution error |
± 3 ℃ |
|
Heating time |
from room temperature to 200 ℃, about 40 minutes. |
|
Inner box size |
60cm (W) x 35cm (D) x 35cm (H) |
|
Outer box size |
110cm (L) x 48cm (D) x 168cm (H) |
|
Inner box material |
SUS # 304 stainless steel. |
|
Outer box material |
A3 steel, using electrostatic baking paint. |
|
Insulation material |
high-density asbestos |
|
Heater |
One set of spiral tube heater: 220V 3.2KW |
|
Timer |
freely set from 0 to 999 hours |
|
Deformation resolution |
0.01mm |
|
Load weights |
three each of 50g, 100g, 200g, 500g |
